Public Spaces Car Parks
| Order Code | Lm | V out Output Voltage |
lm/W Lumen Circuit Wattage |
Wattage | Colour Temp Kelvin (K) |
Ra CRI |
|---|---|---|---|---|---|---|
| VMT1.5 | 1500lm | 24 | 125 | 11.3W | 4000k/5000k | >80 |
| VMT2.4 | 2400lm | 24 | 130 | 17.8W | 4000k/5000k | >80 |
| VMT3.3 | 3300lm | 24 | 136 | 23.6W | 4000k/5000k | >80 |
| Description | Suffix |
|---|---|
| Frosted Diffuser | /F |
| Prismatic Diffuser | /P |
| Clear Lense | /CL |
| Frosted Lense | /FL |
| Steel Body | /STEEL |
| Flange/Plate Mounted | /FL |
| Root Mounted | /RT |
| Access Door Hatch (Lockable) | /HATCH |
| Security Drive/Key | /SD |
| Integral 3hr Emergency or 3hr Self Test | /EM3 or /EM3-SELF |
| Microwave Motion Detection | /M-WAV |
| Integral Dusk/Dawn Photocell | /PC |
| Dimmable | /DALi / 1-10v / SW-240v / CORR |
| LED Compact Lamp Gear Tray (240v Mains) | /GT-LEDPL |
| Fluorescent Lamp Version (240v Mains) | /T5 or /T8 On Request |
Protected against dust and low pressure jets of water.
High impact and vandal resistant fitting.
Energy Efficient LED Technology.
| IP20 | Protection against a solid object greater than 12mm. Offers no protection against liquids. |
| IP23 | Protection against a solid object greater than 12mm & against sprays of water up to 60° from the vertical - limited ingress permitted. |
| IP40 | Protection against a solid object greater than 1mm. Offers no protection against liquids. |
| IP44 | Protection against a solid object greater than 1mm & against sprays of water from all directions - limited ingress permitted. |
| IP54 | Protected against dust (no harmful deposit) & against sprays of water from all directions - limited ingress permitted. |
| IP65 | Total protection against dust. Protected against low pressure jets of water from all directions - limited ingress permitted. |
| IK10 | 20 Joules Of Impact |
| IK10~35J | 35 Joules Of Impact |
| IK10~50J | 50 Joules Of Impact |
| IK10~75J | 75 Joules Of Impact |
| IK10~100J | 100 Joules Of Impact |
| IK10~125J | 125 Joules Of Impact |
| IK10~150J | 150 Joules Of Impact |
| IK10~175J | 175 Joules Of Impact |
| IK10~200J | 200 Joules Of Impact |

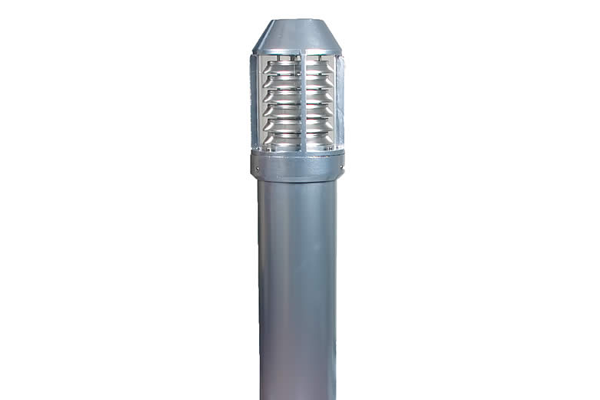

A robust, decorative, heavy duty bollard with a tough polycarbonate lens & anodised, aluminium louvre stack for controlled light distribution. Cast aluminium head with protective struts. Sealed using flush stainless steel security screws. Root and flange mounted options available. Optional overall heights on request.
