Bollard & Exterior Lighting

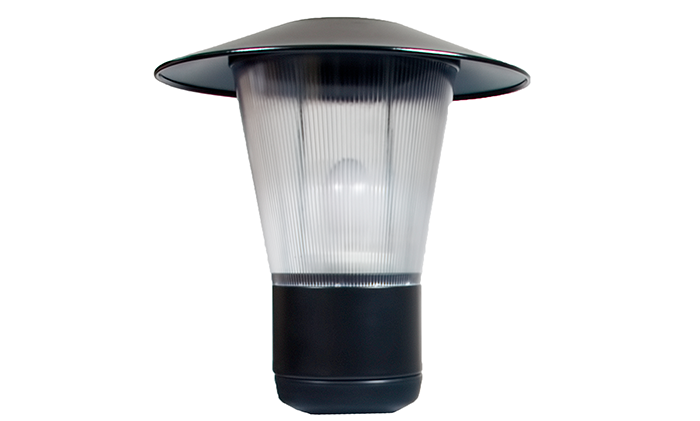

Sky Post Top Large.

Industries
Sky Post Top Large Options
Applications

Public Spaces Car Parks

Order Code Lm V out
Output Voltage
lm/W
Lumen
Circuit Wattage
Wattage Colour Temp
Kelvin (K)
Ra
CRI
SKYL1.5 1500lm 24 125 11.3W 4000k/5000k >80
SKYL2.4 2400lm 24 130 17.8W 4000k/5000k >80
SKYL3.3 3300lm 24 136 23.6W 4000k/5000k >80
SKYL5.0 5000lm 900 (Forward Current) 127 40.5W 4000k/5000k >80
SKYL7.0 7000lm 1050 (Forward Current) 134 64W 4000k/5000k >80
Description Suffix
Frosted Diffuser/F
Prismatic Diffuser/P
Clear Lense/CL
Frosted Lense/FL
Security Drive/Key/SD
Integral 3hr Emergency or 3hr Self Test/EM3 or /EM3-SELF
Microwave Motion Detection/M-WAV
Integral Dusk/Dawn Photocell/PC
Nightlight/NL
Dimmable/DALi / 1-10v / SW-240v / CORR
LED Compact Lamp Gear Tray (240v Mains)/GT-LEDPL
Fluorescent Lamp Version (240v Mains)/T5 or /T8 On Request


IP65 Rated

Protected against dust and low pressure jets of water.

Vandal Resistant

High impact and vandal resistant fitting.

Energy Efficient

Energy Efficient LED Technology.

  PDF Data Sheet
IP20 Protection against a solid object greater than 12mm. Offers no protection against liquids.
IP23 Protection against a solid object greater than 12mm & against sprays of water up to 60° from the vertical - limited ingress permitted.
IP40 Protection against a solid object greater than 1mm. Offers no protection against liquids.
IP44 Protection against a solid object greater than 1mm & against sprays of water from all directions - limited ingress permitted.
IP54 Protected against dust (no harmful deposit) & against sprays of water from all directions - limited ingress permitted.
IP65 Total protection against dust. Protected against low pressure jets of water from all directions - limited ingress permitted.
IK10 20 Joules Of Impact
IK10~35J 35 Joules Of Impact
IK10~50J 50 Joules Of Impact
IK10~75J 75 Joules Of Impact
IK10~100J 100 Joules Of Impact
IK10~125J 125 Joules Of Impact
IK10~150J 150 Joules Of Impact
IK10~175J 175 Joules Of Impact
IK10~200J 200 Joules Of Impact
IK Ratings Information Read More
Product Information
  • Frosted or Clear Prismatic Diffuser
  • Latest LED Technology
  • Dimmable Option Available
  • Motion Detection Option Available
Description

A robust, decorative, heavy duty bollard with a tough polycarbonate lens & anodised, aluminium louvre stack for controlled light distribution, with cast aluminium dome head. Sealed using flush stainless steel security screws. Root and flange mounted options available. Optional overall heights on request.
